UBIQUITI MIAMI
Connectivity Technology USB, Ethernet
Brand Ubiquiti Networks
Compatible Devices Most all devices
Control Method App
Frequency Band Class Single-Band
Operating System UBNT System
Wireless Type 802.11ac
Security Protocol WEP
Number of Ports 1
Data Transfer Rate 1000 Megabytes Per Second
his UF-Loco UFiber Gigabit Passive Optical Network (GPON) from Ubiquiti Networks lets you share a high-speed Fiber connection with Gigabit-enabled devices. The UF-Loco comes equipped with a single GPON port and a single Gigabit Ethernet port, as well as a digital LED display, making it easy to view the status of the connection. Additionally, this GPON device supports downstream data rates of up to 2.488 Gb/s and upstream data rates of up to 1.244 Gb/s as well as 1490 nm downstream and 1310 nm upstream wavelengths. Installation is simple, as the PoE-compatible GPON device can be mounted on a wall for easy access.
WAN: 1 x GPON port
LAN: 1 x Gigabit Ethernet port
GPON Speeds: 2.488 Gb/s downstream (RX), 1.244 Gb/s upstream (TX)
Wavelengths: 1490 nm downstream (RX), 1310 nm upstream (TX)
Max. Power Consumption: 3.5W
Power Method: 24V Passive PoE or micro-USB power adapter
Mounting: Wall-mountable (indoor)

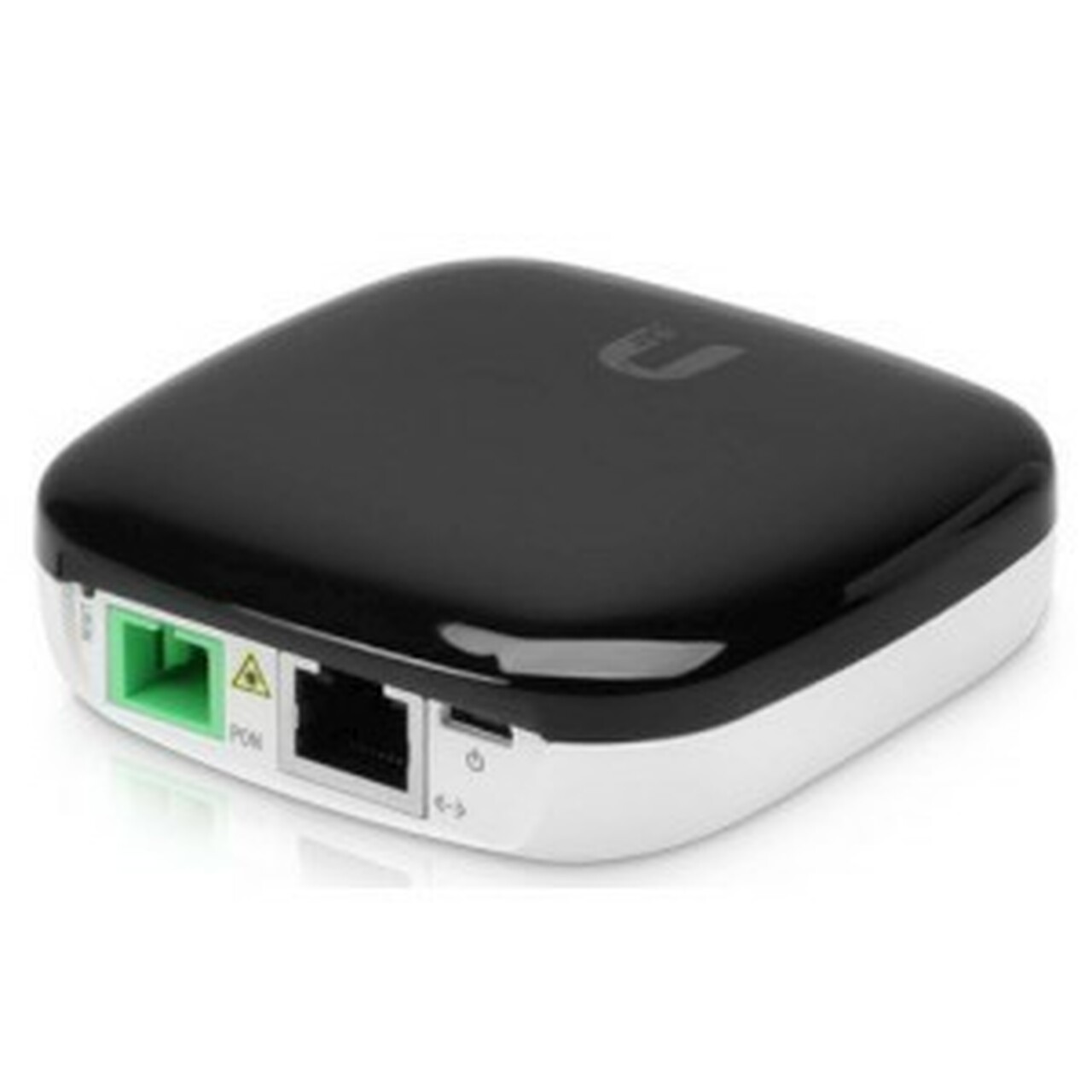

This UF-Nano UFiber Gigabit Passive Optical Network (GPON) from Ubiquiti Networks lets you share a high-speed Fiber connection with Gigabit-enabled devices. The UF-Nano comes equipped with a single GPON port and a single Gigabit Ethernet port, as well as a digital LED display, making it easy to view the status of the connection. Additionally, this GPON device supports downstream data rates of up to 2.488 Gbps and upstream data rates of up to 1.244 Gbps as well as 1490 nm downstream and 1310 nm upstream wavelengths. Installation is simple, as the PoE-compatible GPON device can be mounted on a wall for easy access.
Connectivity
• Single GPON WAN port
• Single Gigabit Ethernet port
GPON Speeds
• 2.488 Gbps downstream
• 1.244 Gbps upstream
Wavelengths
• 1490 nm downstream
• 1310 nm upstream
Display
• Digital LED for status reporting
Power Method
• 24 V Passive PoE
Mounting
• Wall-mountable
Expand your network with the compact UniFi USW Flex Mini 5-Port Gigabit Managed Switch from Ubiquiti Networks. The fully managed switches included in this 5-pack feature five RJ45 Gigabit Ethernet ports that provide fast, wired connections to compatible devices, supporting a 10 Gb/s switching capacity and 7.44 Mpps forwarding rate. The Flex Mini can also be powered through its PoE-in port when connected to a compatible 802.3af/at device or using separately purchased USB Type-C power adapters. With its small, fanless desktop design, the Flex Mini fits into almost any office, home, or business environment, where it operates silently. Use the UniFi Network Controller platform (version 5.12.5 or higher) to configure, manage, and monitor the switch and its connected devices.
UniFi Network Controller
Single interface network management
Intuitive and comprehensive device configuration, control, and monitoring
Remote firmware upgrading
Manage network users and guests
Personalize the design, architecture, and privacy of guest hotspots
