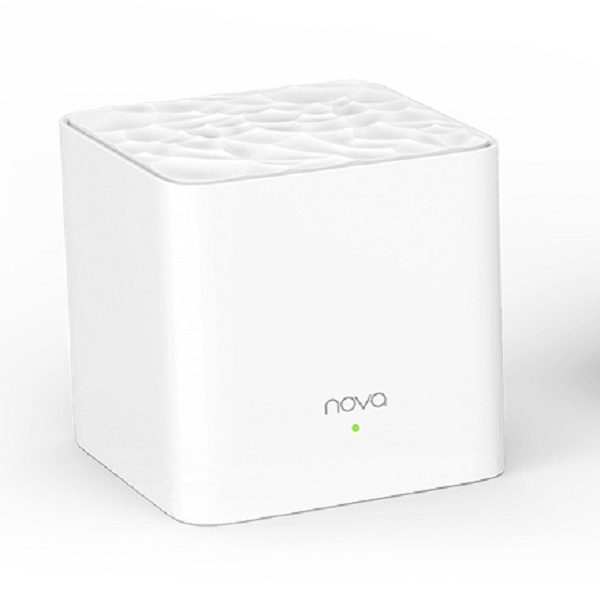

nova MW3 / Mesh / AC1200 Whole Home Mesh WiFi System
Nova MW3 is a 1200 Mbps dual band distribution mesh Wi-Fi system designed for 1,100 – 3,200 square foot households, bringing you whole home Wi-Fi coverage, as well as fast and stable Internet access. A pack of 3 provides you with up to 3,200 square feet of Wi-Fi coverage, while a pack of 2 provides you with up to 2,200 square feet of coverage. Compliant with IEEE 802.11v and IEEE 802.11r seamless roaming protocols, nova MW3 supports automatic network optimization and automatic routing selection, allowing you to enjoy a more stable and flexible wireless network.
Whole Home Mesh WiFi
Standard&Protocol
IEEE802.3, IEEE802.3u
Interface
2 Ethernet ports per mesh node
WAN and LAN on primary mesh node
Both act as LAN ports on additional mesh nodes
WAN and LAN on primary mesh node
Both act as LAN ports on additional mesh nodes
Antenna
2*3dBi internal dual band antennas
Button
1 reset button
Power
Input：100-240V—50/60Hz
Dimension
90 x 90 x 90mm
Wireless Standards
IEEE 802.11ac/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz
IEEE 802.11b/g/n 2.4GHz
Wireless Frequency
2.4G: 2400MHz-2483MHz
5G: 5150MHz-5250MHz or 5725MHz-5825MHz
5G: 5150MHz-5250MHz or 5725MHz-5825MHz
Data Rate
5GHz: Up to 867Mbps
2.4GHz: Up to 300Mbps
2.4GHz: Up to 300Mbps
Frequency
Simultaneous dual band 2.4GHz & 5GHz
Basic Features
SSID Broadcast
Beamforming
Beamforming
Wireless Security
Mixed WPA/WPA2-PSK(default)
Wireless roaming
Comply with IEEE802.11v/r
Internet Connection Type
PPPoE, Dynamic IP, Static IP, Bridge Mode
DHCP Server
DHCP Server
DHCP Client List
DHCP Client List
Virtual Server
Port Forwarding
UPnP
UPnP
QoS
Support Smart QoS
Firewall
Forbid UDP flood attack
Forbid TCP flood attack
Forbid ICMP flood attack
Forbid TCP flood attack
Forbid ICMP flood attack
DNS
Support manually setting DNS server
VPN
IPsec pass through
PPTP pass through
L2TP pass through
PPTP pass through
L2TP pass through
Other
Parental Control
Guest Network
Firmware upgrade online
Reset to factory settings
Guest Network
Firmware upgrade online
Reset to factory settings
Setup Requirements
A mobile device running Android 4.0+ or iOS 8+
Temperature
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃.
Storage Temperature: -40℃ ~ 70℃.
Humidity
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing.
Storage Humidity: 5% ~ 90%RH non-condensing.
Certification
FCC, CE, RoHS, EAC, IC
Package Content
(3-pack) 3 identical mesh nodes
3 power adapters
Quick install guide
1 ethernet cable
3 power adapters
Quick install guide
1 ethernet cable
