Vertical Fiber Optic Splice Closure OSCV-48B is widely applied to the splicing, distributing variable optical cables. Is made of high-quality engineering plastic with good strength. It can help splicing, splitting, storage, and management with suitable space, with good water-proof performance. It is suitable for aerial, pole/wall (included), underground environment.
Hotline Order:
1 (888) 399-5130
Email ID:
info@4netonline.com

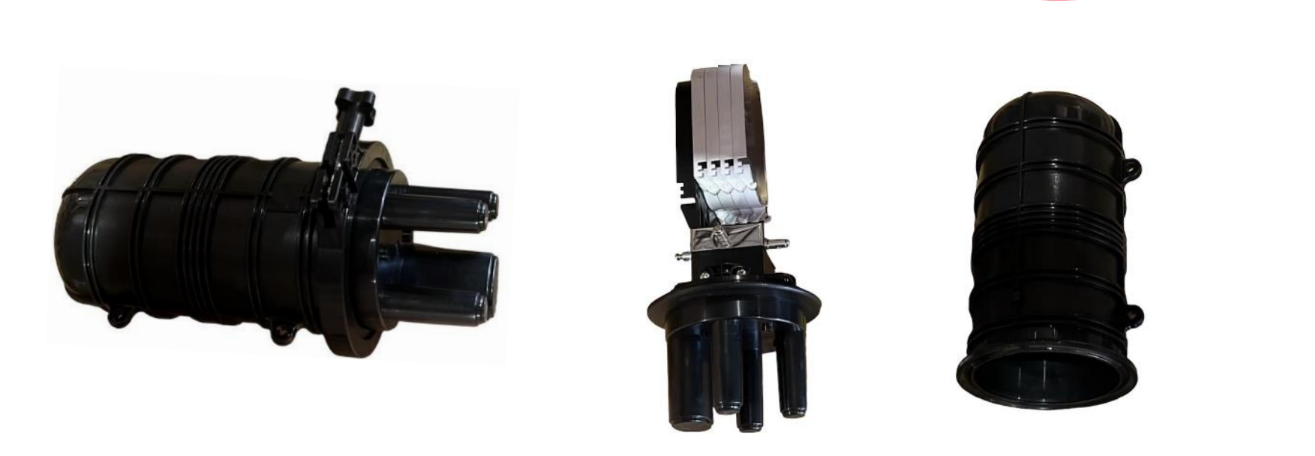

Fiber Optic Vertical Splice Closure (Black)
Specifications
Material: High-impact resistance PP with UV
Dimension (mm): ¢ 146*310.5
Weight: 1.3 Kgs
Splice Trays: 4 PCs, each with 12 cores
Cable ports: 3 x 18mm and 1 Oval port
Seal: All ports fully heat-sealed
IP Rating: IP68
Mounting: Aerial hanger and pole mounting, 2
Stainless Steel Hoop and 2 Clamp
Applications:
- FTTH access network
- Telecommunication Networks
- CATV Networks
- Data communications Networks
- Local Area Networks
