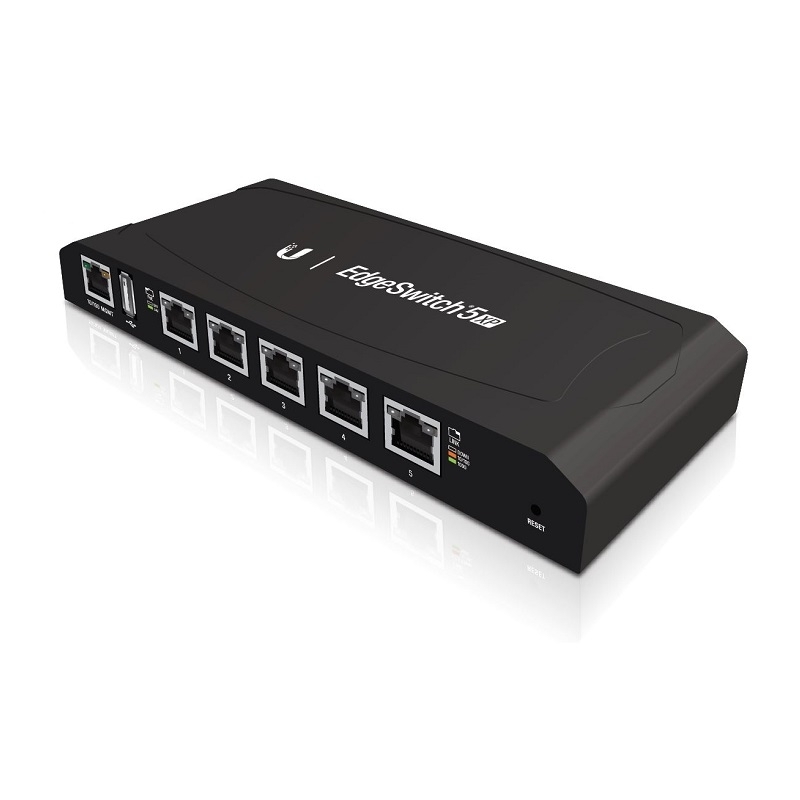

Ubiquiti EdgeSwitch 5XP
Ubiquiti EdgeSwtich 5XP is an advanced Power over Ethernet Switches, EdgeSwitch XP from Ubiquiti Networks. EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.
Ubiquiti EdgeSwitch 5XP is a cost-effective, 5-Port gigabit switch with 24V PoE support. EdgeSwitch XP allows network architects to design cleaner, less cluttered deployments. EdgeSwitch XP deployments increase efficiency and greatly reduce potential failure points – resulting in faster installations and less maintenance and troubleshooting.
Product Features
• 5 Gigabit PoE Ports
• 24V Configurable Passive PoE
• EdgeSwitch XP Configurable Interface
• Wall-Mountable
Product Specifications
• Dimensions: 197 x 87.5 x 27.3 mm
• Weight: 250 g
• Power Input: 24VDC, 2.5A Power Adapter (Included)
• Max. Power Consumption: 60 W
• PoE Out Voltage Range: 22-24VDC
• Max/ PoE Wattage Per Data Port: 11.5 W
• ESD Rating: 24 kV Air / 24 kV Contact
• PoE Method: Passive
• Button: Reset
• USB Port: 2.0 Type A (Reserved for Future Use)
• Processor: MIPS 24K, 400 MHz
• System Memory: 64 MB
• Code Storage: 8 MB
• Certifications: CE, FCC, IC
• Wall-Mount: Yes
• Operating Temperature: -25 to 55°C (-13 to 131° F)
• Operating Humidity: 90% Non-Condensing
PoE Configurable Per Port
• Management Port: N/A
• Data Ports: Off/24V
LEDs Per Port
• Management Port: Power /Link/Activity
• Data Ports: PoE, Speed/ Link/ Activity
Networking Interfaces
• Management Port: (1) 10/100 Ethernet Port
• Data Ports: (5) 10/100/1000 Ethernet Ports
Product Includes
• (1) Ubiquiti EdgeSwitch 5XP
• (2) Screws
• (2) Anchors
• (1) Power Adapter (24V, 2.5A)
• (1) Power Cord
• (1) Quick Start Guide
