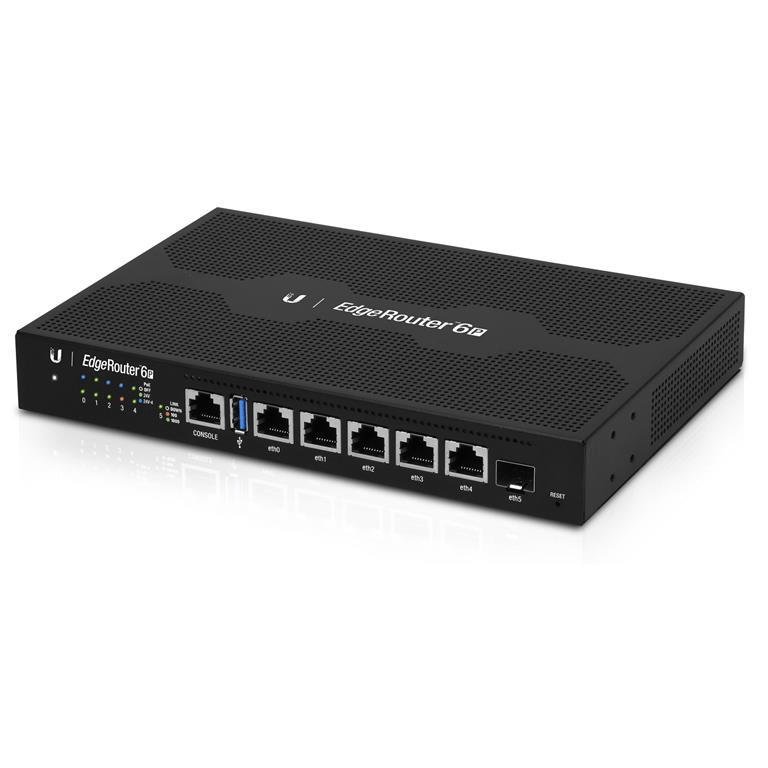

Ubiquiti EdgeMAX EdgeRouter
Ubiquiti EdgeRouter 6P offer gigabit ethernet ports and an SFP port for a fiber link. The EdgeRouter 6P also offers five configurable PoE ports to power airMAX products. The 6P are capable of routing up to 3.4 million packets per second and has a line rate of 6 Gbps.
Ubiquiti EdgeRouter 6P is powered by EdgeOS and can easily configured for routing, security, and management features required to efficiently run your network. For advanced network professionals, an intergrated CLI is available for quick and direct access using familiar components.
Product Features
• 5 Gigabit RJ45 routing ports
• PoE support on RJ45 ports: 24V 2-pair or 24V 4-pair
• 1 Gigabit SFP port
• 3.4 million packets per second for 64-byte packets
• 6 Gbps for packets 256 bytes or larger in size
• Silent, fanless operation
• Compact, durable metal case
Product Specifications
• Dimensions: 9.02 x 5.37 x 1.22 in
• Weight: 1.61lb
• Max. Power Consumption: 16 W (Excludes PoE Output)
• Power: External AC Power Adapter, 60W (24V,2.5A)
• Power Input: 110 -240VAC
• Button: Reset
• LEDs: Data Ports – Speed/Link/Activity, PoE : SFP Data Port – Link/Activity
• Networking Interfaces Manangement:
(1) RJ45 Serial Port
(6) Ethernet Ports (Defaults eth0)
• Networking
(5) 10/100/1000 RJ45 Ports with PoE
(1) 1 Gbps SFP Port
• Processor: 4-Core 1 GHz, MIPS64
• System Memory: 1 GB DDR3 RAM
• On-Board Flash Storage 4 GB eMMC, 8 MB SPI NOR
• Rack-Mountable: Yes
• Operating Temerpature: -10 to 50degC (14 to 122degF)
• Operating Humidity: 10 – 90% Noncondensing
• Certifications: CE, FCC, IC
PoE with 24VDC Power Adapter
• PoE Interfaces: (5) 24V PoE Ports, 2-pair (4, 5+; 7, 😎 and 4-pair
• Passive PoE Max. Wattage Per Port: 24W (24V/1A, 4-pair)
• Voltage Range Passive PoE: 24V
