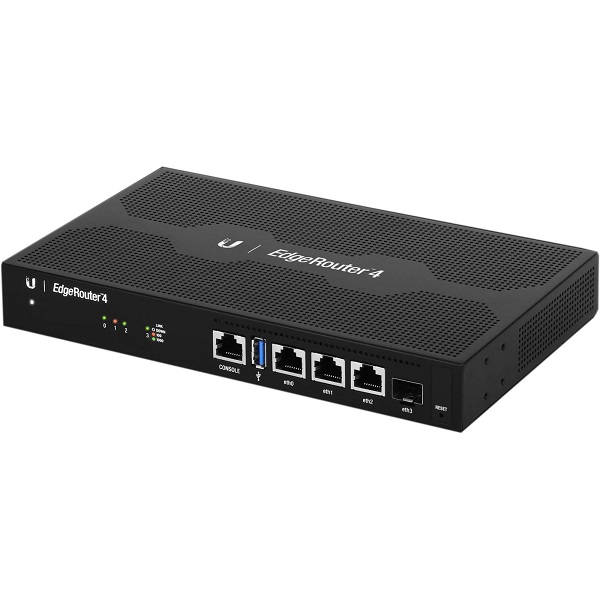

Ubiquiti EdgeMAX EdgeRouter
Ubiquiti Networks introduces the EdgeRouter 4, part of the next generation of routers for the EdgeMAX platform. Edge Routers combine carrier-class reliability with enterprise-level features in a compact and affordable unit.
The EdgeRouter 4 offers three Gigabit Ethernet ports and an SFP port for a fiber link.
The EdgeRouter 4 is capable of routing up to 3.4 million packets per second and has a line rate of 4 Gbps.
Direct Traffic Flow:
• Interfaces: Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces to meet your network segmentation requirements.
• Routing: Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.
Secure Your Network:
• Firewall Policies: Organize the rules you apply in the order you specify.
• Firewall Groups: Apply the policies to groups filtered by IP address, network address, or port number.
• NAT Rules: The EdgeRouter Lite changes packet addressing based on your customized source and destination NAT rules.
Manage Your Network:
• DHCP Server: Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Easily control dynamic and static IP addressing for your network devices.
• Monitoring Tools: Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture, and Log Monitor.
• User Accounts: Manage access to the EdgeRouter Lite using unique administrator and operator accounts.
Product Specifications:
• Processor: 4-Core 1 GHz, MIPS64
• System Memory: 1GB DDR3 RAM
• Onboard Flash Storage: 4GB eMMC, 8MB SPI NOR
• Power Input: 110 – 240VAC
• Rack-mountable: Yes
• Data Ports: (3) 10/100/1000 Ethernet Ports, (1) 1 Gbps SFP Port
• Serial Console Port: (1) RJ45 Serial Port
• Packet Size: 64 Bytes – 3,400,000 pps
• Packet Size: 128 Bytes or larger – 4 Gbps (Line Rate)
• Dimensions: 229 x 136.5 x 31.1 mm (9.02 x 5.37 x 1.22 in)
• Weight: 1.76lbs (0.8kg)
Product Includes:
• EdgeRouter 4-port
• Wall Mount Anchors
• Wall Mount Screws
• Power Cord
• Quick Start Guide
