Ubiquiti EdgeMAX

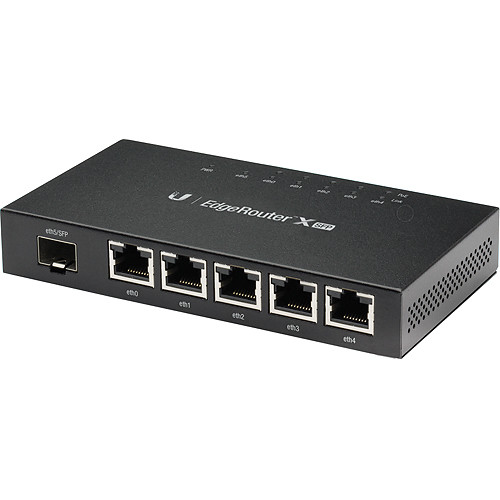

The ER-X-SFP model supports 24V passive PoE to power up to five airMAX devices. Both models, the ER-X and ER-X-SFP, provide five independent, Gigabit RJ45 ports that are configurable for switching. The ER-X-SFP adds an optical SFP port to support backhaul applications. The intuitive, graphical user interface is easy to learn and makes routing features simple to configure and monitor. It includes an integrated Command-Line Interface (CLI) for convenient access to advanced functions.
Product Features:
• Sophisticated routing features
• Advanced security, monitoring and management
• Versatile PoE capability
• Gigabit connectivity
• EdgeOS with advanced GUI
• Ports configurable for line-rate, Layer-2 switching
• 130kpps for 64-byte packets
• 1Gbps for 1518-byte packets
Product Specifications:
• Max. Power Consumption: 5W
• Max. Total PoE Output: 50W @ 24V
• PoE Output: Passive 24V (Pins 4, 5+; 7, 😎
• Power Input: 24VDC, 2.5A Power Adapter (Included)
• Power Supply: External AC/DC Adapter
• Supported Voltage Range: 9 to 26VDC
• LED: Power, Link/Activity (6), PoE (5)
• Processor: Dual-Core 880 MHz, MIPS1004Kc
• System Memory: 256 MB DDR3 RAM
• Code Storage: 256 MB NAND
• Certifications: CE, FCC, IC
• Wall-Mountable: Yes
• ESD/EMP Protection: Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature: 14 to 113deg F (-10 to 45deg C)
Networking Interfaces:
• Data/PoE Input Port: 5 x 10/100/1000 RJ45 Ports
• Data Port: 1 x 100/1000 SFP Port
PoE with 24VDC Power Adapter
• PoE Out Voltage Port: 22-24VDC
• Max. PoE Wattage per Data/PoE Output Port: 12W (24V)
• Max. PoE Wattage Combined (All 5 Data Ports): 50W
• PoE Method: Passive
Product Includes:
• (1) ER-X-SFP router
• (1) Power adapter (24V, 2.5A)
• (1) Power cord
• (1) Quick Start Guide
