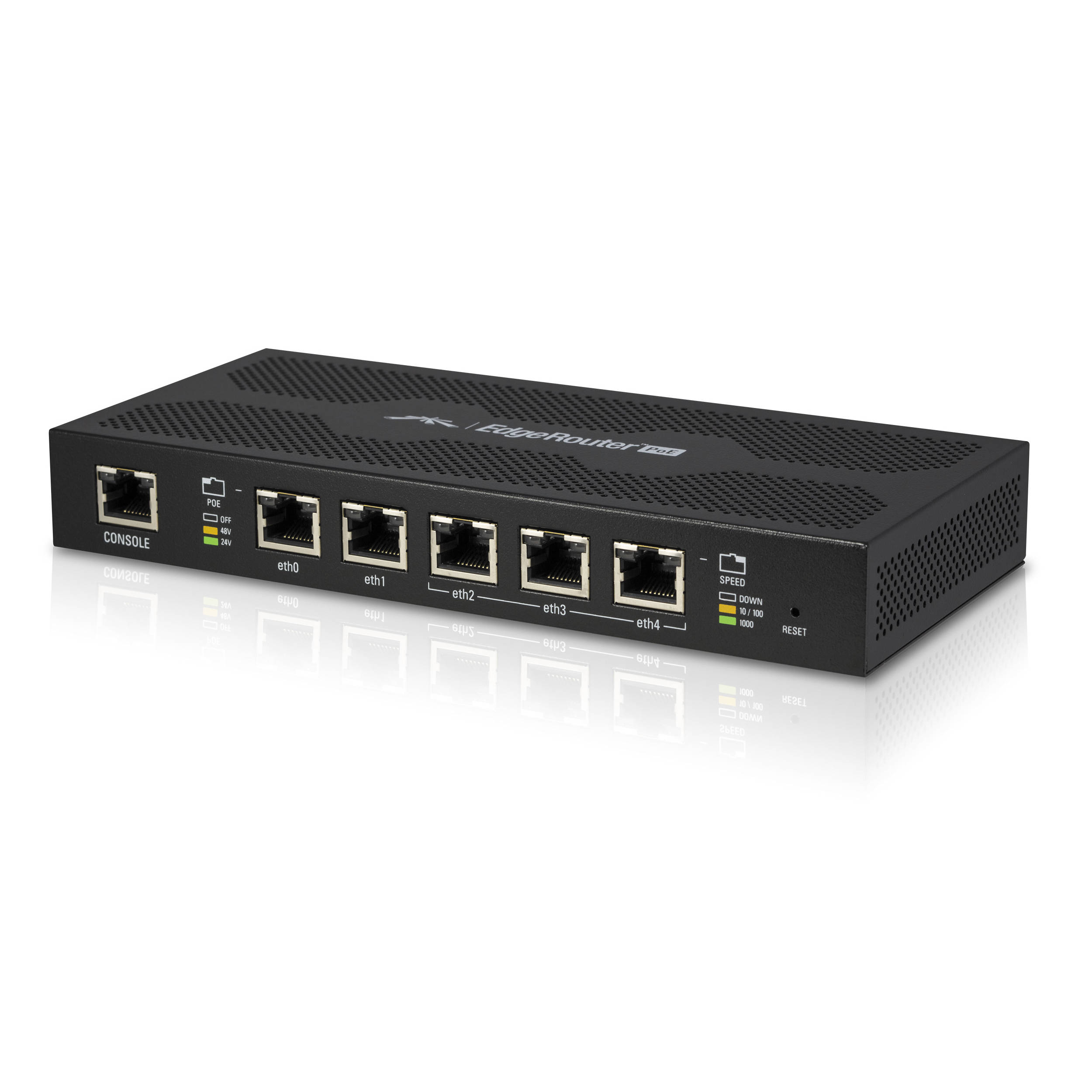

Ubiquiti EdgeMAX 5-Port EdgeRouter ERPoe-5
The Ubiquiti Networks EdgeRouter POE combines one million packet-per-second routing, high performance hardware-based switching, and PoE into an affordable and compact 5- port product.
The Ubiquiti Networks EdgeRouter POE combines one million packet-per-second routing, high performance hardware-based switching, and PoE into an affordable and compact 5- port product. Powered by the feature-rich EdgeOS, EdgeRouter POE is a versatile solution for any network.
Product Features
• (5) Gigabit routing ports
• (5) PoE configurable ports
• Supports 24V or 48V PoE
• (3) Ports configurable for switching
• 1 million packets per second for 64-byte packets
Product Specifications:
• Dimensions: 200 x 90 x 30mm (7.87 x 3.54 x 1.18″)
• Weight: 360g (12.7oz)
• Max. Power Consumption: 60W
• Power: 24VDC, 2.5A Power Adapter (included)
• Power Input: 24VDC Input (Supported Range: 18 to 26VDC) or 48VDC Input (Supported Range: 38 to 54VDC)
• Power Connector Size: FC Power Jack: 2.1mm
• Button: Reset
• Processor: Dual-Cor 500MHz, MIPS64 with Hardware Acceleration for Packet Processing
• On-Board Flash Storage: 512MB DDR2 RAM
• Certifications: CE, FCC, IC
• Wall-Mount: Yes
• Operating Temperature: -10 to 45°C (14 to 113°F)
• Operating Humidity: 10-90% non-condensing
• Layer 3 Forwarding Performance:
64 Bytes: 1,000,000 pps
512 Bytes or Larger: 3Gbps (line rate)
• LEDs per Port:
Serial Console Port: Power
Data Ports: PoE,Speed/Link/Activity
• PoE Configurable per Port:
Serial Console Port: N/A
Data Ports: Off/24V/48V
• Networking Interfaces:
(1) RJ45 Serial Port
(2) 10/100/1000 Ethernet Router Ports + (3) 10/100/1000 Ethernet Router/Switch Ports
PoE with 24VDC Power Adapter
• PoE Out Voltage Range: 22-24VDC
• Max. PoE Wattage per Data Port: 12W (24V)
• Max. PoE Wattage Combined for All 5 Data Ports: 50W
• PoE Method: Passive
PoE with 48VDC Power Adapter (not included)
• PoE Out Voltage Range: 22-24VDC / 45-48VDC
• Max. PoE Wattage per Data Port: 12W (24V), 24W (48V)
• Max. PoE Wattage Combined for All 5 Data Ports: 50W
• PoE Method: Passive
Ubiquiti EdgeMAX 5-Port EdgeRouter
Product Includes:
• (1) EdgeRouter POE
• (1) 48VDC, 1.25A Power Adapter
• (1) Power Cord
• (2) M2.9×20 Screws
• (2) M2.9 Screw Anchors
• (1) Quick Start Guide
Ubiquiti EdgeMAX 5-Port EdgeRouter
