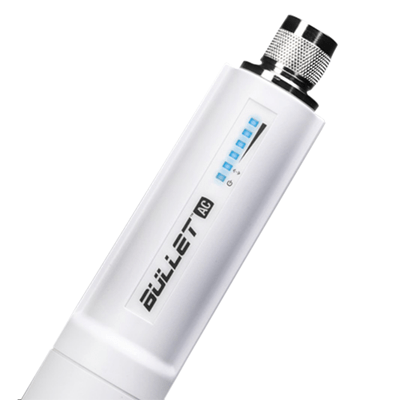

Ubiquiti airMAX Bullet
Ubiquiti airMAX Bullet Dual-Band AC 2.4/5Ghz US is an airMAX ac radio for high performance and ease of installation. You have the freedom to deploy the Bullet AC anywhere in the world, as it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations).
The Bullet AC eliminates the need to use RF cables and requires no special antenna or tools to install. No radio card / host board issues. No RF cable quality concerns. No mechanical stability concerns. No enclosure mounting requirements. With the Bullet AC, operators can just plug and go.
Product Features
• The Bullet AC covers 5 GHz spectrum, covering a wide range of frequency bands that work well for both short and long-distance links.
• 24V Passive PoE functionality is included. Both power and data are carried over a single Ethernet cable to the Bullet AC. Use the included PoE Adapter or an optional PoE switch.
• The Bullet AC offers up to 22 dBm of output power.
• The Bullet AC features a weatherproof design. Made from a high-grade, powder-coated aluminum, the casing can withstand nature’s harshest outdoor elements.
Product Specifications
• Dimensions: 190 x 46 mm (7.48 x 1.81″)
• Weight: 196 g (6.91 oz)
• Enclosure: Powder-Coated Aluminum
• Networking Interface: Gigabit Ethernet Port
• Antenna Connector: N-Type Connector
• LEDs: Power, Ethernet, (4) Signal Strength
• Management Radio: 2.4 GHz
• Throughput
5 GHz – 300+ Mbps
• Max. Power Consumption: 8W
• Output Power: 22 dBm
• Power Supply: AC to 24VDC, 0.5A Gigabit PoE Adapter
• Power Method: 24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
• ESD/EMP Protection: ± 24 kV Contact / Air
• Operating Temperature: -40 to 70° C (-40 to 158° F)
• Operating Humidity: 5 to 95% Condensing
• Shock and Vibration: ETSI300-019-1.4
• Certifications: CE, FCC, IC
• Operating Frequency: 5725 – 5850 MHz
• Management Radio: 2412 – 2462 MHz
