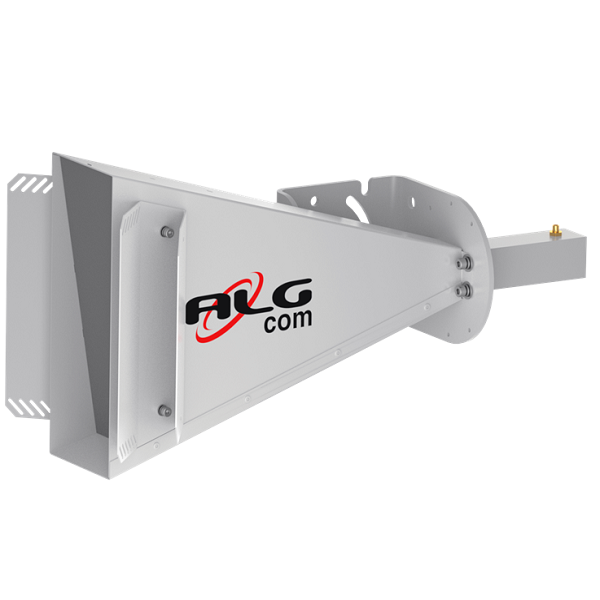

ALGcom Antennas were designed with high technology to ensure the best performance in unlicensed frequency wireless links. They are used on point-to-point wireless links and have standard fitting for coupling the ALGcom Armored Boxes, in addition to having a support that allows for the easy link alignment.
SECTORIAL SHIELDED
| LINK PTM |
| FREQUENCY 4.9-64.25 GHz |
| NAME SECTORIAL ARMORED |
| GAIN 19 dBI |
| OPENING ANGLE -3 DB (V) 13
OPENING ANGLE -3 DB (H) 30 OPENING ANGLE -6 DB (H) 40 |
| FRONT RELATION >37 db |
| CROSS ISOLATION POLARIZATION >26 db |
| POLARIZATION Dual (V & H) |
| CONNECTION SMA reverse female |
| WEIGHT 6 lbs |
| WARRANTY 3 Years |
