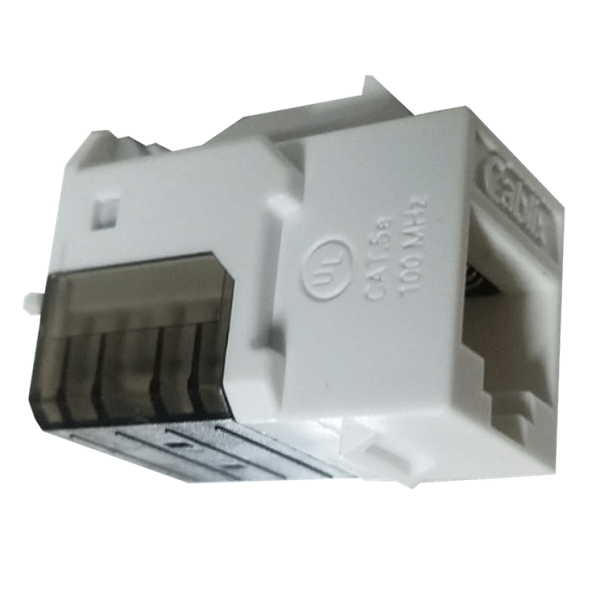

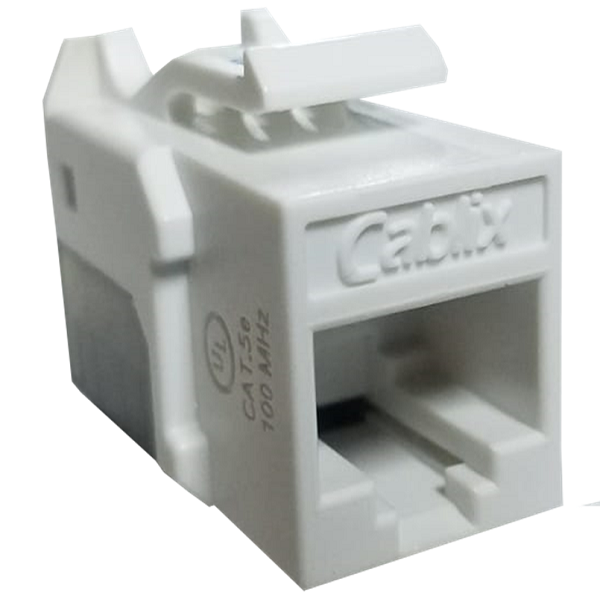

Keystone Cat. 5E MKE-03

Keystone Cat. 5E

Cat. 5E Specification

• Material
• 1. RJ45 Jack
• 1.1. Housing: ABS+PC, UL94V-0, with optional color.
• 1.2. Contact Bracket : PBT+Glass Fiber, UL 94V-0, with black color.
• 2. RJ45 Jack Contact
• 2.1. Material: Phosphor Bronze with Nickel plated.
• 2.2. Finish: 50micro-inch Gold plated on Plug contact area.
• 3. IDC
• 3.1. Housing: PC+Glass Fiber, gray color (RAL 7035), UL 94V-2.
• 3.2. Terminal: Phosphor Bronze with Tin plated.
• 4. IDC CAP: PC 1250Y UL 94V-2, transparent black.
• 5. PCB: FR4, UL 94V-0.
• Technical information
• T568A & T568B wiring.
• The Cat5e transmission performance is in compliance
• with the ANSI/TIA 568 C.2 standard.
• UL listed. Cat. 5E

Performance

• 1. T568A & T568B wiring.
• 2. Insertion force: 20N max. (IEC 60603-7-4).
• 3. Retention strength: 7.7kg between Jack and Plug.
• 4. Operating temperature: -10°C to 60°C. (ISO/IEC 11801, ANSI/TIA 568 C.2)
• 5. Life (mating cycles):
• Jack: 750 cycles min. (ISO/IEC 11801, IEC 60603-7-4)
• IDC: Suitable for 23-26 AWG stranded and solid wire, compatible with 110 punch down tool. Cat. 5E
• 6. The Cat5e transmission performance is in compliance with the ANSI/TIA 568 C.2 standard
