Loco5AC

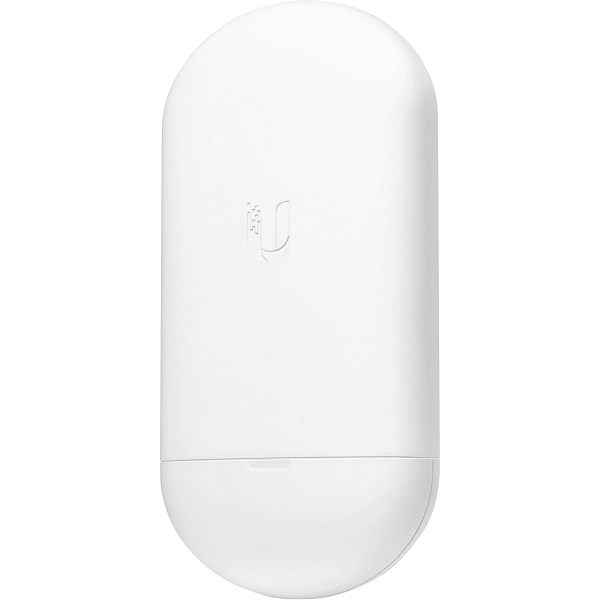

Ubiquiti Networks set the bar for the world’s first low-cost and efficient broadband Customer Premises Equipment (CPE) with the NanoStation® M. The NanoStation AC loco take the same concept to the future with sleek form factors, along with integrated airMAX® (MIMO TDMA protocol) technology and dedicated Wi-Fi management.
The radio and antenna are combined to create a more efficient and compact CPE. The NanoStation AC loco gets maximum gain out of the smallest footprint. The low cost, high performance, and small form factor of the NanoStation AC and NanoStation AC loco make them extremely versatile and economical to deploy.
Classic NanoStation design with updated proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UNMS mobile app support and fast setup. Excellent solution for a simple PtP bridge or use as a PtMP station (CPE).
Features:
-
- New antenna
- Improved design
- Management WiFi Radio/UNMS mobile app
- AirOS 8
| Dimensions | 179 x 77.5 x 59.1 mm (7.05 x 3.05 x 2.33″) |
| Weight | 0.18 kg (6.35 oz) |
| Processor | MIPS 74K |
| Memory | 128 MB |
| Gain | 13 dBi |
| Channel Bandwidth | 10/20/30/40/50/60/80 MHz |
| Networking Interface | 10/100/1000 Mbps Ethernet Port |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power Supply | 24V, 0.5A Gigabit PoE Supply (Not Included) |
| Max. Power Consumption | 8.5W |
| Supported Voltage Range | 24V ±10% |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
