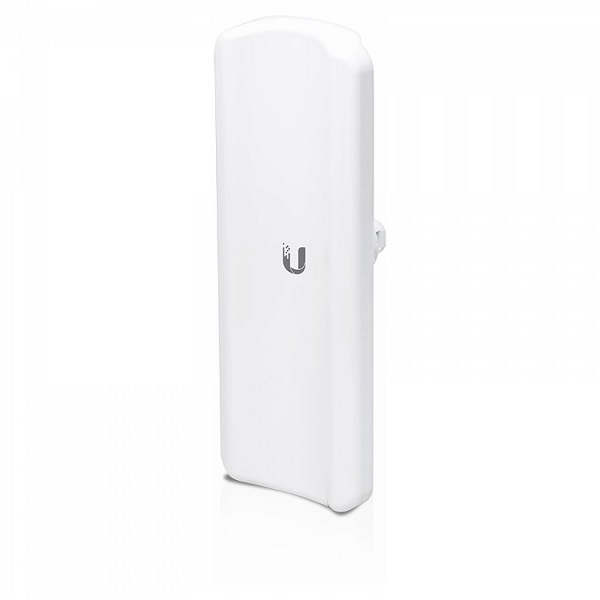

Ubiquiti airMAX LiteAP AC
Powerful and affordable 5 GHz sector access point. GPS synchronized units provide up to 450+ Mbps data throughput.
Introducing the airMAX® LiteAP™ AC, the latest high-performance access point with disruptive pricing from Ubiquiti. Featuring an ultra-lightweight form factor, the LiteAP AC was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. Each of these models operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds.
Features:
-
- GPS Sync support
- Lightweight, low-cost solution
- High-performance 90 degree antenna
Ubiquiti Lite AP GPS 90 Degree Sector Antenna. The Lite AP GPS features an integrated high-performance 90 degree sector antenna and GPS Sync for scale-able, cost-effective airMAX AC networks. LiteAP GPS supports GPS Sync for faster, more scalable, carrier-class networks.
Features
• Quick Installation
• Versatile Mounting
• Efficient Design
• Gigabit Ethernet
Specifications
• Dimensions (mount not included): 360.98 x 124.57 x 71.28 mm (14.21 x 4.90 x 2.81″)
• Weight (no mount): 752 g (1.66 lb)
• Mounting Kit: Pole Mounting Kit (Included)
• Networking Interface: (1) 10/100/1000 Ethernet Port
• Memory: DDR2 64 MB
• Max. Power Consumption: 7.1W
• Max.TX Power: 25 dBm
• Antenna Gain: 17dBi
• Power Supply: 24V, 0.3A PoE Adapter (Included)
• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Processor Specs: Atheros MIPS 74Kc, 533 MHz
• Shock and Vibration: ETSI300-019-1.4
• ETSI Specification: EN 302 326 DN2
• ESD/EMP Protection: ± 24 kV Contact / Air
• RoHS Compliance: Yes
• Operating Temperature: -40 to 70° C (-40 to 158° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: FCC, IC, CE
Product Includes
(1) LAP-GPS Antenna
(1) User Manual
(1) Ball Joint Mount
(1) Metal Strap
(1) Gigabit PoE (24V 0.3A) with mounting bracket
(1) Power Cord
