cnPilot Enterprise

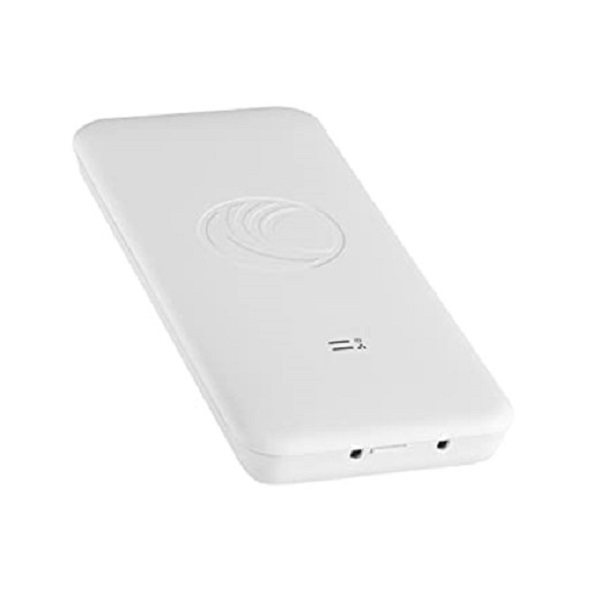

cnPilot[tm] E501S – Outdoor Sector IP67 802.11ac 90° – 120° Outdoor Sector Access Point
Perfect for demanding, high density applications and longer range coverage across large areas, including: industrial or education campuses, enterprise and hospitality complexes, public parks and recreational areas, or just about any demanding outdoor environment requiring cost-effective, controller managed WLAN access points.
The cnPilot Wi-Fi Network Highlights
Operational superiority – The E501S with integrated sector antenna supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more. The 802.11ac E501S is the essential workhorse for today’s demanding, high density outdoor Wi-Fi networks.
High performance Wi–Fi network – All cnPilot’s Enterprise access points (APs) support features like controller-less roaming, dynamic channel selection, automatic transmit power control, band steering, and more – essential features for easy Wi-Fi operations.
Mesh – Rapidly setup multi-hop mesh networks either dedicating one radio (e.g.: 5 GHz) for mesh backhaul, or using both bands for client access simultaneously.
Wireless Backhaul Integration – the aux PoE port on the E501S offers PoE out, eliminating the need for a second power line – perfect for powering on a standard 802.3af camera, or on Cambium’s PMP 450 or ePMP backhaul subscriber modules (SMs) for wireless backhaul enabled Wi-Fi hotspots.
Resilience – Dual on-board Active/Standby memory banks ensure higher availability. The E501S can store two versions of the software – defaulting to a working operational software if needed – reducing the likelihood of site visits and increasing network up-time.
DESIGNED FOR THE OUTDOORS
* 802.11ac, 256 users, 16 SSIDs cnPilot Enterprise
* 90°~120° coverage
* 23 dBm front-back ratio
* UV rated IP-67 enclosure
* Operating Temp: -30°C ~ +60°C
* Electrical heater for cold start
* Ruggedized – ESD protection, industrial- grade components
* Packaged with wall mount brackets
* Special LTE coexistence filters
* Light weight ~ 1Kg
cnMAESTRO – WI–FI CONTROLLER
* Guest Access: Custom splash pages, vouchers, social login
* Zero-touch provisioning
* Inventory tracking
* Map location
* Monitoring: key stats, alarms
* Mass (bulk) upgrade
* Integrated troubleshooting: Wi-Fi APs, Clients & Cambium SMs
* Controller: Cloud or Virtual On-premises (NOC) controller
