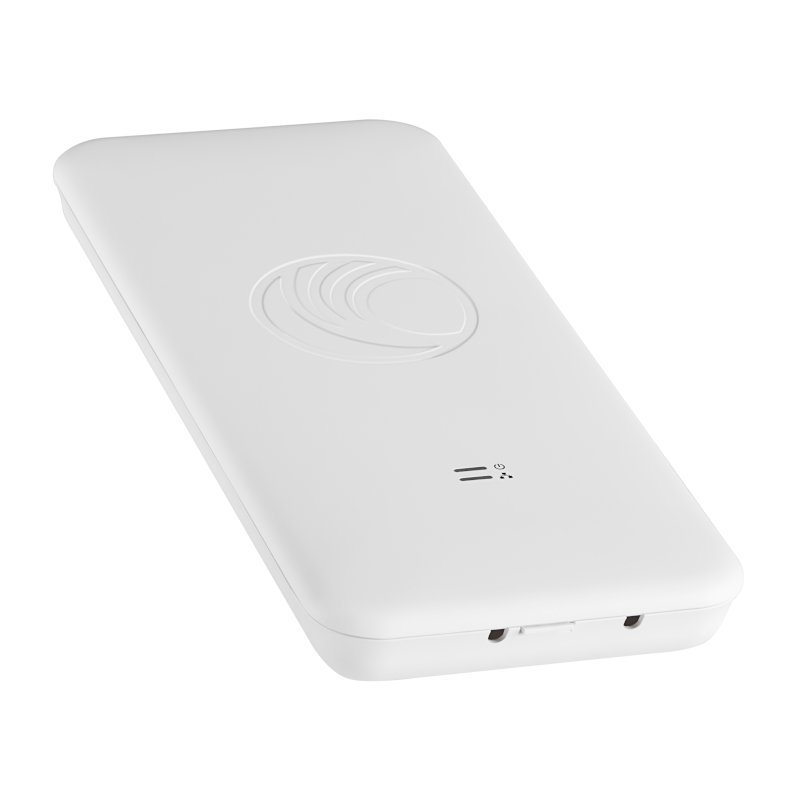

Cambium cnPilot E500
Built for Enterprise campuses, Public WiFi, Hospitality, educational institutions, Industrial campuses, or just about any demanding outdoor environment requiring cost-effective, controller managed WLAN Access Points.
Product Features
• Operational Superiority: Supporting 256 max concurrent client associations, up to 16 SSIDs, WPA-2 encryption, Dybamic VLANs, DFS channels, Access control lists(ACL), zero touch provisioning and more, the 802.11ac E500 is the essential workhorse for demanding high density outdoor WiFi networks
• High performance WiFi network: All cnPilot’s Enterprise Access Points (APs), include the #500 series support features like controller-less roaming, automatic channel scanning, band steering, pre-set scheduling of SSIDs RADIUS based dynamic rate limiting per SSID and more- all needed essential features for real world WiFi deployment
• Mesh: Rapidly setup multiple E500 APs via a mesh network with ability to dedicate one radio for mesh backhaul and use the other radio for client access
• Flexible Backhaul: All E500 APs come with two Gigabit Ethernet ports and the ability to configure one of the ports as PoE out – perfect for powering any standard 802.3af equipment. When paired with Cambium’s PMP450 or ePMP backhaul subscriber modules (SMs) for wireless backhaul, the E500 can also drive power to the backhaul module eliminating the need for a second power line
Product Specification
• Frequency Bands: 2.4 GHz: 2.4 – 2.4835 GHz (Channels 1-13 ETSI/CE ; Channels 1-11 US) ; 5 GHz: 5.15 – 5.85 GHz
• SSID Security: WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) & WPA2-Preshared-keys, Open
• Max SSIDs: 16
• Max Concurrent Clients: 256
• Max Range (Client): 213 m (700 ft); Actual range will vary based on local RF conditions and client capability
• Max Range (Mesh): 2.4 GHz: 3,000 m (9840 ft) ; 5 GHz: 1500 m (4900 ft)
• Max Data Rates: 1.01 Gbps
• Ethernet Ports: Dual Gigabit Ethernet ports (2 x 10/100/1000Base-T)
• Antenna: Dual polarized, 2×2 MIMO, Integrated Omni (360°) antenna
• Antenna Gain: 5 dBi
• Power Supply: 56V / 30W Gigabit passive PoE injector
• PoE Out: Aux port: capable of 802.3af Power out or Canopy power (for supported Cambium ePMP or PMP 450 SMs)
• Transmit Power: 29dBm @ 2.4 GHz ; 28dBm @ 5 GHz
• Power Consumed: Typical: 8W / Max: 12.95W (no auxiliary device connected)
• Dimensions: 30 x 20.4 x 6.5 cm (11.8 x 8 x 2.56 in)
• Weight: Without bracket: 881 g (0.88 Kg); with bracket: 1063 g (1.06 Kg)
• Operating Temperature: -30°C to +60*deg;F (-22°F to +140°F)
• Mounting Options: Pole mount bracket (included) or wall-mount (with included bracket or without)
• LTE Co-Existence: Special filter for rejecting interference on 2.4 GHz from adjacent LTE bands 38, 40
• Physical Security: Kensington Lock bracket
• Visual Status: Two (2) multi-color LEDs indicating Access Point & cnMaestro connectivity status
Package Includes
• (1) E500 access point
• (1) E500 pole/wall mount bracket
• (1) 56V / 30W Gigabit passive PoE power injector
• (1) Wall-mounting screw kit
• (2) RJ45 IP67 gland connectors
• (1) AC power cord
